JP Weaver CAD Directory - Plaster









PLAS 816 M Forentine Crown
4-1/4" Projection
4-1/8" Height
86"Length
5" Repeat
24 lbs Per Length
Request CAD
Request
CAD
File

PLAS 839 M Adam Crown
6-3/4" Projection
6-3/4" Height
86"Length
8-5/8 " Repeat
24 lbs Per Length
90" Shipping Length
Request CAD
Request
CAD
File

PLAS 853 Coved Adam Crown
10-1/2" Projection
13" Height
85-1/2"Length
8-1/2" Repeat
63 lbs Per Length
91-1/2" Shipping Length
Request CAD
Request
CAD
File

PLAS 854 Barlow Crown
10" Projection
12" Height
79"Length
19-3/4" Repeat
70 lbs Per Length
83" Shipping Length
Request CAD
Request
CAD
File

PLAS 855 Hallway Crown
11-3/4" Projection
10" Height
81-1/2"Length
10-3/16" Repeat
55 lbs Per Length
85-1/2" Shipping Length

Request CAD
Request
CAD
File

PLAS 857 Italian Fruit Crown
3-1/8" Projection
7-3/8" Height
82"Length

82" Repeat
35 lbs Per Length
83-1/2" Shipping Length

Request CAD
Request
CAD
File

v
PLAS 858 Large French Crown
15-3/8" Projection
12" Height
78"Length
39" Repeat
70 lbs Per Length
82" Shipping Length
Request CAD
Request
CAD
File

v

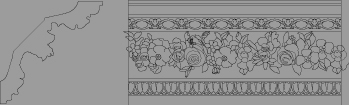

PLAS 859 Flower Cluster Crown
9-1/2" Projection
9-1/2" Height
90"Length
90" Repeat
60 lbs Per Length

93" Shipping Length

Request CAD
Request
CAD
File

PLAS 859 C Flower Cluster Crown (Modified)
7-5/8" Projection
7-1/2" Height
90" Length
90" Repeat
55 lbs Per Length

93" Shipping Length

Request CAD
Request
CAD
File


PLAS 860 Small Corbel Crown
12-1/4" Projection
9 " Height
71 "Length
8-7/8 " Repeat
72 lbs Per Length

84" Shipping Length

Request CAD
Request
CAD
File


PLAS 862 Petite French Crown
9-1/2" Projection
8-1/2" Height
79-1/4"Length
26-7/16" Repeat
46.5 lbs Per Length

84" Shipping Length

Request CAD
Request
CAD
File


PLAS 862 B Petite French Crown
8-5/8" Projection

7-1/2" Height
79-3/8"Length
26-7/16" Repeat
40 lbs Per Length

84-3/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 867 Wave Crown
3-5/8" Projection
6-3/4" Height
87-3/4" Length
9-3/4" Repeat
42 lbs Per Length

92-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 868 Fret Crown
15" Projection
12" Height
75-1/2"Length
75-1/2" Repeat
60 lbs Per Length

81" Shipping Length

Request CAD
Request
CAD
File


PLAS 869 Double Acanthus Leaf Crown
10" Projection
11" Height
81" Length
4-1/2" Repeat
65 lbs Per Length

84-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 870 Rinceau Crown
15-1/8" Projection
12" Height
66-1/2" Length
23" Repeat
65 lbs Per Length

78" Shipping Length

Request CAD
Request
CAD
File


PLAS 874 Petite Corbel Crown
6-5/8" Projection
4-3/8" Height

77" Length
7" Repeat
40 lbs Per Length

83-5/8" Shipping Length

Request CAD
Request
CAD
File


PLAS 874 B Petite Corbel Crown (Vertical)
6-1/2" Projection
7-1/4" Height
77" Length
7" Repeat
50 lbs Per Length

91-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 877 Large Egg & Dart Crown
5" Projection
4-3/4" Height
93" Length
8-7/16" Repeat

30 lbs Per Length

94-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 878 Newport Egg & Dart Crown
3-1/8" Projection
5-1/4" Height
73-1/4" Length
4" Repeat

28 lbs Per Length

73-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 879 Newport Sill Crown
3" Projection
6-5/8" Height
94" Length
22-3/4" Repeat

45 lbs Per Length

94" Shipping Length

Request CAD
Request
CAD
File


PLAS 880 French Crown Blank
15-1/4" Projection
12" Height
88-3/4" Length
11" Repeat

66 lbs Per Length

90" Shipping Length

Request CAD
Request
CAD
File


PLAS 882 Small Barlow Crown
8-1/4" Projection
6-3/16" Height
80" Length
19-7/8" Repeat

38 lbs Per Length

83" Shipping Length

Request CAD
Request
CAD
File


PLAS 889 Solarium Crown
6-1/8" Projection
12" Height

43-1/2" Length

35 lbs Per Length

43-1/2" Shipping Length

Request CAD
Request
CAD
File


PLAS 890 Plain Itaian Crown
3-1/8" Projection
7-3/8" Height
82" Length
2-3/16" Repeat

35 lbs Per Length

83" Shipping Length

Request CAD
Request
CAD
File


PLAS 896 Small Rinceau Crown
9" Projection
7" Height
81-1/4" Length
16-1/4" Repeat

50 lbs Per Length

83" Shipping Length

Request CAD
Request
CAD
File


PLAS 899 Large Chinoiserie Crown
15-1/4" Projection
8-1/2" Height
84" Length
84" Repeat

65 lbs Per Length

87" Shipping Length

Request CAD
Request
CAD
File


PLAS 904 French Ribbon Crown
3-1/2" Projection
5-3/4" Height
88" Length

35 lbs Per Length

90-1/4" Shipping Length

Request CAD
Request
CAD
File

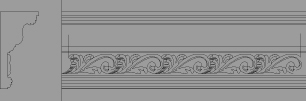

PLAS 905 Scroll & Reed Crown
2-1/2" Projection
5" Height
89" Length
6-3/8" Repeat

20 lbs Per Length

90-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 911 Oceantrails Crown
6-1/8" Projection
5-1/2" Height
85-3/4" Length
4-1/2" Repeat

30 lbs Per Length

86-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 911 B Oceantrails Crown (Modified)
3-3/4" Projection
3-5/8" Height
84-1/4" Length

21 lbs Per Length

85" Shipping Length

Request CAD
Request
CAD
File

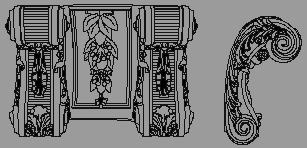

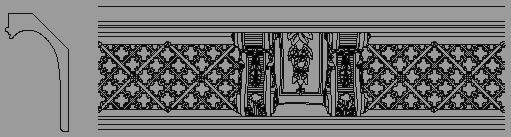

PLAS 913 French Corbel Crown
5" Projection
9-3/4" Height
90" Length

35 lbs Per Length

90" Shipping Length

Request CAD
Request
CAD
File


PLAS 914 Acanthus Reed Crown
6" Projection
5-1/2" Height
91-3/4" Length
10-3/4" Repeat

31 lbs Per Length

95-1/4" Shipping Length

Request CAD
Request
CAD
File


PLAS 915 Bell & Tongue Coved Crown
9" Projection
7-1/2" Height
85" Length
3-7/16" Repeat

37 lbs Per Length

87-1/8" Shipping Length

Request CAD
Request
CAD
File



PLAS 916 Fine Acanthus Crown
4-1/2" Projection
3-1/2" Height
85" Length
4-1/2" Repeat

23 lbs Per Length

87-1/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 917 Small Fret Crown
9" Projection
7-1/2" Height
90" Length

35 lbs Per Length

92-3/8" Shipping Length

Request CAD
Request
CAD
File

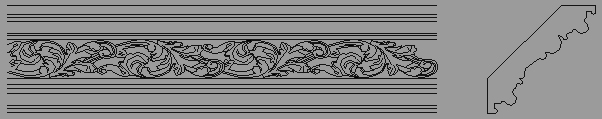

PLAS 925 Rolled Scroll Symmetrical Crown
5" Projection
5" Height
84-1/2" Length
10-9/16" Repeat

30 lbs Per Length

90-3/8" Shipping Length

Request CAD
Request
CAD
File

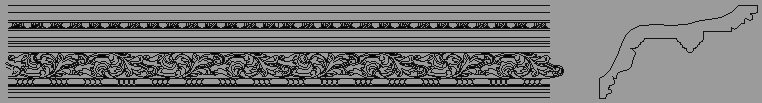

PLAS 927 Conference Room Crown
12" Projection
7" Height
82" Length
20-1/2" Repeat

53 lbs Per Length

83-1/2" Shipping Length

Request CAD
Request
CAD
File

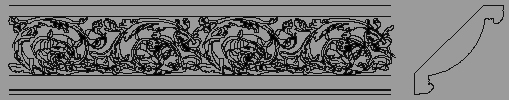

PLAS 930 Large Rinceau Concave Crown
10-1/2" Projection
10-1/2" Height
67-3/8" Length
22-1/2" Repeat

62 lbs Per Length

81-3/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 932 Petite Barlow Crown
3-1/4" Projection
4-1/2" Height
85-1/2" Length
9-1/2" Repeat

20 lbs Per Length

89-1/2" Shipping Length

Request CAD
Request
CAD
File



PLAS 2083 B Lumsden Crown
2-1/8" Projection
4-5/8" Height
90-3/4" Length
7" Repeat

22 lbs Per Length

90-1/4" Shipping Length

Request CAD
Request
CAD
File





PLAS 861 Large Coved Corner
15" Projection
12" Height
24" Width

25 lbs Per Length



Request CAD
Request
CAD
File



PLAS 861 B Coved Center
16-1/2" Projection
12-3/4" Height
27-5/8" Width

28 lbs Per Length



Request CAD
Request
CAD
File



PLAS 894 Petite Coved Corner
9-1/2" Projection
8-3/4" Height
14" Width

20 lbs Per Length



Request CAD
Request
CAD
File



PLAS 865 Masini Light Cove
7" Projection
2-3/8" Height
96" Length
8-13/16" Repeat

36 lbs Per Length

97" Shipping Length

Request CAD
Request
CAD
File



PLAS 871 Byerly Acanthus Light Cove
5" Projection
4-1/8" Height
89-3/8" Length
2-1/4" Repeat

24 lbs Per Length

91-3/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 891 Hilton Light Cove
10" Projection
4-1/2" Height
83-1/2" Length
83-1/2" Repeat

55 lbs Per Length

85-1/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 893 Egg & Dart Light Cove
7" Projection
2" Height
96" Length
1-1/2" Repeat

36 lbs Per Length

91-1/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 902 Reed & Volute Light Cove
2-5/8" Projection
4-1/8" Height
90-1/2" Length
1-1/2" Repeat

20 lbs Per Length

91" Shipping Length

Request CAD
Request
CAD
File



PLAS 920 Mar-A-Lago Light Cove
10" Projection
5" Height
94-3/4" Length
94-3/4" Repeat

53 lbs Per Length

95-5/8" Shipping Length

Request CAD
Request
CAD
File

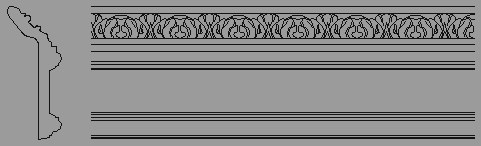

PLAS 920 B Acanthus Light Cove
10-1/8" Projection
4-1/8" Height
90-3/4" Length
4-1/2" Repeat

54 lbs Per Length

91-3/4" Shipping Length

Request CAD
Request
CAD
File



PLAS 1015 Reed with Egg & Dart Light Cove
2-1/4" Projection
3-1/4" Height
96" Length
1-1/2" Repeat

20 lbs Per Length

97" Shipping Length

Request CAD
Request
CAD
File

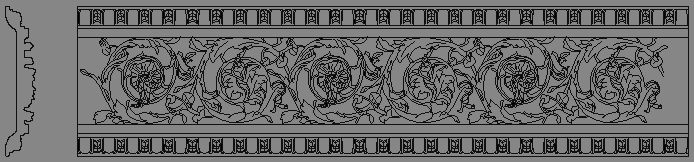

PLAS 842 Large Rinceau Frieze
3-5/8" Projection
18-1/4" Height
68-1/2" Length

65 lbs Per Length

74" Shipping Length

Request CAD
Request
CAD
File



PLAS 843 Bird Moulding Frieze
1-7/8" Projection
10-1/4" Height
62" Length
62" Repeat

35 lbs Per Length

62" Shipping Length

Request CAD
Request
CAD
File



PLAS 856 Tito Ceiling Band
10" Projection
3-1/8" Height
84-1/2" Length
84-1/2" Repeat

42 lbs Per Length

85-1/2" Shipping Length

Request CAD
Request
CAD
File




PLAS 864 Egg & Dart Panel Moulding
3-1/2" Projection
2" Height
95" Length
1-1/2" Repeat

18 lbs Per Length

96" Shipping Length

Request CAD
Request
CAD
File




PLAS 873 Flower Cluster Ceiling Band
12-1/4" Projection
4-5/8" Height
73-1/8" Length
73-1/8" Repeat

55 lbs Per Length

78-1/8" Shipping Length

Request CAD
Request
CAD
File




PLAS 895 Egg & Dart Ceiling Band
7" Projection
2" Height
95" Length
1-1/2" Repeat

36 lbs Per Length

96" Shipping Length

Request CAD
Request
CAD
File

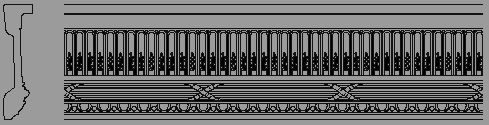

PLAS 919 Fluted Frieze
2-1/2" Projection
9-7/8" Height
96" Length
96" Repeat

42 lbs Per Length

96" Shipping Length

Request CAD
Request
CAD
File

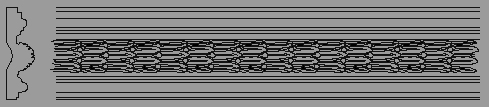

PLAS 921 Mar-A-Lago Laurel Band
7-1/2" Projection
2-1/4" Height
95" Length
4-1/4" Repeat

38 lbs Per Length

95" Shipping Length

Request CAD
Request
CAD
File




PLAS 924 Egg & Dart Frieze
4-5/8" Projection
11" Height
84" Length
7-1/8" Repeat

60 lbs Per Length

87" Shipping Length

Request CAD
Request
CAD
File




PLAS 811 Wreath Rosette

20-1/4" Diameter

7/8" Depth

3-9/16" Dia. @ Hole

7/8" Depth @ Hole

5" Dia. Flat Area @ Center Hole

Weight: 16 lbs.

Request CAD
Request
CAD
File




PLAS 817 Icicle Rosette
23" Diameter

2-1/4" Depth

4" Dia. @ Hole

2-1/4" Depth @ Hole

6-1/2" Dia. Flat Area @ Center Hole

Weight: 16 lbs.

Request CAD
Request
CAD
File




PLAS 818 Acanthus Rosette

27-5/8" Diameter

3" Depth

3-1/2" Dia. @ Hole

2-1/2" Depth @ Hole

6-3/8" Dia. Flat Area @ Center Hole

Weight: 28 lbs.

Request CAD
Request
CAD
File




PLAS 825 Reed & Tongue Rosette

27-5/8" Diameter

28-5/8" Dia. Tip to Tip

2-3/4" Depth

3-1/2" Dia. @ Hole

2-1/4" Depth @ Hole

6-3/8" Dia. Flat Area @ Center Hole

Weight: 25 lbs.

Request CAD
Request
CAD
File




PLAS 826 Acanthus Rosette

42-3/8" Diameter

3-1/4" Depth

4-1/8" Dia. @ Hole

3-1/4" Depth @ Hole

6-1/4" Dia. Flat Area @ Center Hole

Weight: 60 lbs.

Request CAD
Request
CAD
File




PLAS 826 A Acanthus Rosette

19-1/2" Diameter

2-1/4" Depth

4-1/8" Dia. @ Hole

2-1/4" Depth @ Hole

6-1/4" Dia. Flat Area @ Center Hole

Weight: 11 lbs.

Request CAD
Request
CAD
File




PLAS 826 B Acanthus Rosette

25-1/4" Diameter

2-3/4" Depth

4-1/8" Dia. @ Hole

2-3/4" Depth @ Hole

6-1/4" Dia. Flat Area @ Center Hole

Weight: 25 lbs.

Request CAD
Request
CAD
File




PLAS 831 Acanthus Rosette

60-1/4" Diameter

4-3/4" Depth

6-1/2" Dia. @ Hole

4-9/16" Depth @ Hole

10-1/8" Dia. Flat Area @ Center Hole

Weight: 129 lbs.

Request CAD
Request
CAD
File





PLAS 849 Tongue & Pearl Rosette

28-1/4" Diameter

2-1/2" Depth

4" Dia. @ Hole

1/2" Depth @ Hole

5-3/8" Dia. Flat Area @ Center Hole

Weight: 30 lbs.

Request CAD
Request
CAD
File





PLAS 876 Canopy Rosette

13-1/2" Width

15" Length

3-3/4" Depth

1-7/8" Dia. @ Hole

3-1/4" Depth @ Hole

2-3/8" Dia. Flat Area @ Center Hole

Weight: 6 lbs.

Request CAD
Request
CAD
File





PLAS 903 Dome Rosette With Reed Band

29-3/4" Diameter

2-5/8" Depth

4-3/8" Dia. @ Hole

1/2" Depth @ Hole

7" Dia. Flat Area @ Center Hole

Weight: 30 lbs.

Request CAD
Request
CAD
File





PLAS 906 Acanthus & Coin Rosette

29-3/4" Diameter

2-3/4" Depth

5-1/2" Dia. @ Hole

1-1/2" Depth @ Hole

8-7/8" Dia. Flat Area @ Center Hole

Weight: 30 lbs.

Request CAD
Request
CAD
File

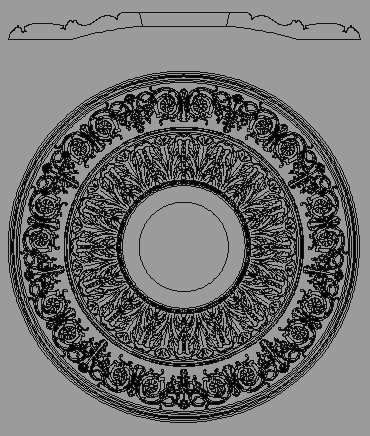

PLAS 910 Mar-A-Lago Rosette

42-1/4" Diameter

3-1/4" Depth

10-3/4" Dia. @ Hole

3-1/4" Depth @ Hole

14-3/4" Dia. Flat Area @ Center Hole

Weight: 65 lbs.

Request CAD
Request
CAD
File

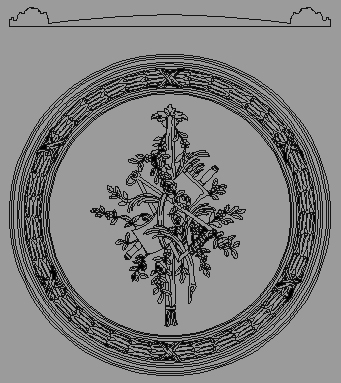

PLAS 922 A Musicial Rosette: Triangle

32-1/4" Diameter

2-1/4" Depth

Weight: 35 lbs.

Request CAD
Request
CAD
File





PLAS 922 B Musicial Rosette: Clarinet

32-1/4" Diameter

2-1/4" Depth

Weight: 35 lbs.

Request CAD
Request
CAD
File

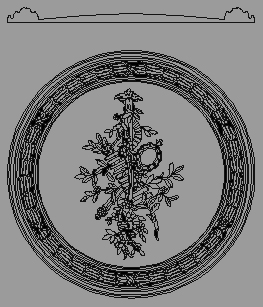

PLAS 922 C Musicial Rosette: Xylophone

32-1/4" Diameter

2-1/4" Depth

Weight: 35 lbs.

Request CAD
Request
CAD
File

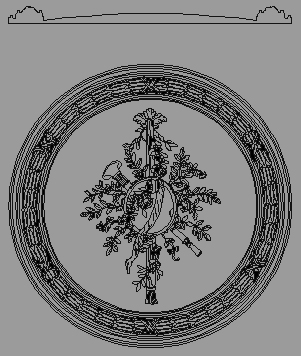

PLAS 922 D Musicial Rosette: Tambourine

32-1/4" Diameter

2-1/4" Depth

Weight: 35 lbs.

Request CAD
Request
CAD
File

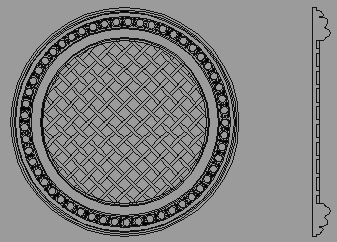

PLAS 926 Fret Rosette

26-1/2" Diameter

1-7/8" Depth

Weight: 26 lbs.

Request CAD
Request
CAD
File

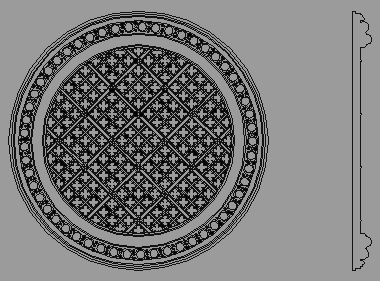

PLAS 926 B Fret Rosette

26-1/2" Diameter

1-7/8" Depth

Weight: 26 lbs.

Request CAD
Request
CAD
File

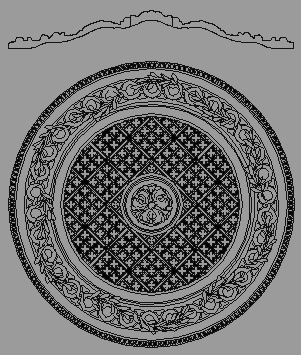

PLAS 928 Lace Fret Rosette

36" Diameter

4-13/16" Depth

5-1/4" Dia. @ Hole

3-7/8" Depth @ Hole

6-1/2" Dia. Flat Area @ Center Hole

Weight: 40 Lbs.

Request CAD
Request
CAD
File

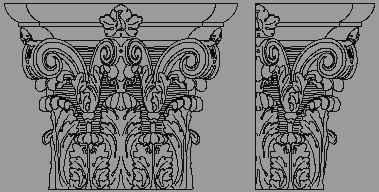

PLAS 845 Corinthian Capital

21-1/2" Width @ Top Front

19" Width @ Top Back

13-1/4" Width @ Bottom

11" Projection @ Top

6-1/4" Projection @ Bottom

17-3/16" Height

12-1/2" x 6-1/4" Shaft Size

Weight: 30 lbs.

Request CAD
Request
CAD
File

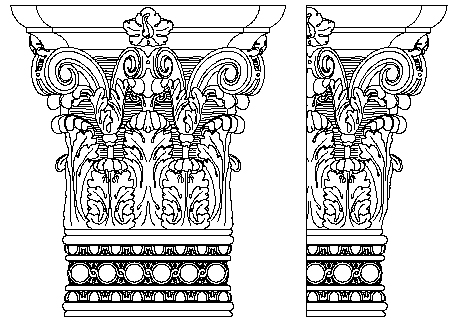

PLAS 845 B Corinthian Capital With Coin
21-1/2" Width @ Top Front
19" Width @ Top Back
13-3/8" Width @ Bottom
11" Projection @ Top
6-5/16" Projection @ Bottom
24-3/8" Height
12-7/8" x 6" Shaft Size
Weight: 35 lbs.

Request CAD
Request
CAD
File

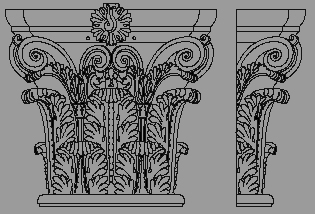

PLAS 846 Large Corinthian Capital
29" Width @ Top Front
23-3/4" Width @ Top Bottom
20-1/4" Width @ Bottom
9-1/2" Projection @ Top
5-3/16" Projection @ Bottom
27" Height
19-5/8" x 4-7/8" Shaft Size
Weight: 40 lbs.

Request CAD
Request
CAD
File

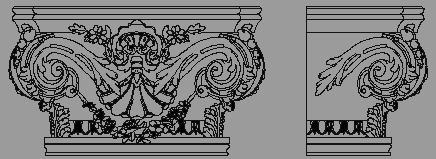

PLAS 847 Homsey Capital
24-1/4" Width @ Top Front
21" Width @ Top Bottom
18" Width @ Bottom
11-1/2" Projection @ Top
8-5/16" Projection @ Bottom
14-1/2" Height
17-1/2" x 8-1/16"Shaft Size
Weight: 30 lbs.

Request CAD
Request
CAD
File

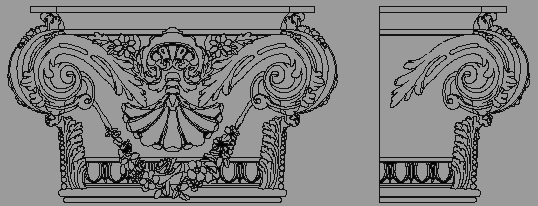

PLAS 847 B Madam Sukma Capital
22-1/4" Width @ Top Front
18-1/2" Width @ Top Bottom
17-1/8" Width @ Bottom
10" Projection @ Top
7-5/8" Projection @ Bottom
15-3/8 Height
16-5/8" x 7-3/8" Shaft Size
Weight: 31 lbs.

Request CAD
Request
CAD
File




PLAS 847 C Madam Sukma Capital Corner
17-15/16" x 17-15/16" x 10-1/16" Depth @ Top
17-5/8" x 17-5/8" x 7-1/2" Depth @ Top
10-1/16" Projection @ Top
7-1/2" Projection @ Bottom
15-3/8" Height
17-5/16" x 17-5/16" x 7-1/4" Shaft Size
Weight: 31 lbs.

Request CAD
Request
CAD
File





PLAS 848 Italian Fruit Capital
18-1/2" Width @ Top Front
13-3/4" Width @ Top Bottom
9" Projection @ Top
6-5/8" Projection @ Bottom
7-3/8" Height
12-3/4" x 6-1/8" Shaft Size
Weight: 25 lbs.

Request CAD
Request
CAD
File




PLAS 897 Byerly Ionic Half Capital
16-1/4" Width @ Top Front
12-5/8" Width @ Top Bottom
11" Width @ Bottom
5-1/8" Projection @ Top
2" Projection @ Bottom
9-3/4" Height
11" x 2" Shaft Size
Weight: 15 lbs.

Request CAD
Request
CAD
File





PLAS 898 Byerly Ionic Full Capital
21-1/16" Projection @ Top
10" Diameter @ Bottom
9-3/4" Height
10" Diameter Shaft Size
Weight: 25 lbs.

Request CAD
Request
CAD
File





PLAS 901 Masini Capital
22-7/16" Width @ Top Front
17-5/8" Width @ Top Bottom
14-7/8" Width @ Bottom
13" Projection @ Top
9-3/4" Projection @ Bottom
12" Height
14-1/4" x 9-7/16" Shaft Size
Weight: 30 lbs.

Request CAD
Request
CAD
File

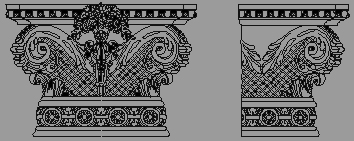

PLAS 901 B Trinity Capital
22-7/16" Width @ Top Front
17-5/8" Width @ Top Bottom
16" Width @ Bottom
13" Projection @ Top
9-3/4" Projection @ Bottom
16" Height
15-3/8" x 9-7/16" Shaft Size
Weight: 29 lbs.

Request CAD
Request
CAD
File

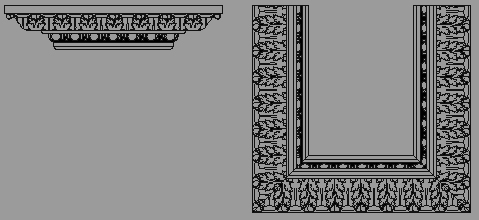

PLAS 916 B Leone Capital
16-1/2" Width
17-3/8" Projection
3-1/2" Height
8-3/8" x 12" Shaft Size
Weight: 11 lbs.

Request CAD
Request
CAD
File




PLAS 838 Small Bombe Fireplace
60-1/2" Width (Base)
66" Width (Mantle Top)
11" Depth
47-1/4" Height


Request CAD
Request
CAD
File

PLAS 875 Rudy Fireplace
96" Width (Mantle Top)
15" Depth
56-3/8" Height


Request CAD
Request
CAD
File

PLAS 884 Byerly Fireplace
74" Width (Mantle Top)
15-3/4" Depth
50" Height


Request CAD
Request
CAD
File

PLAS 892 Floral Fireplace
88" Width (Mantle Top)
14-7/8" Depth
61-1/2" Height


Request CAD
Request
CAD
File

PLAS 11 Corbel
7-1/2" Width
10-1/2"Height

4-1/2"Depth
8 lbs. Each

Request CAD
Request
CAD
File

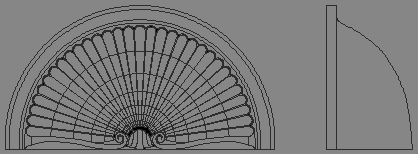

PLAS 850 Shell Niche Cap
30" Width
16"Height
9-1/2"Depth
22 lbs. Each

Request CAD
Request
CAD
File

PLAS 900 Corbel
6" Width
18" Height
6-3/4" Depth
12 lbs. Each


Request CAD
Request
CAD
File

PLAS 908 Ceiling Coffer Panel
40" Width
40" Length
3-1/2" Depth
47 lbs. Each


Request CAD
Request
CAD
File

PLAS 909 Large Corbel
13" Width
20-1/2"Height
12"Depth
20 lbs. Each

Request CAD
Request
CAD
File

PLAS 913 B French Corbel
11-1/8" Width
8" Height
4-1/2"Depth
6 lbs. Each

Request CAD
Request
CAD
File

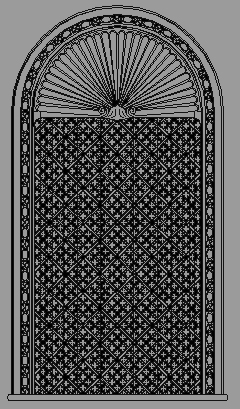

PLAS 929 B Shell Top Niche With Lace Fret
34-3/8" Width
61-1/2" Height
8-5/8" Depth
108 lbs. Each

Request CAD
Request
CAD
File

PLAS 931 Acanthus Corbel
7-3/4" Width
20-1/2" Height
6" Depth
14 lbs. Each

Request CAD
Request
CAD
File



© 2021 JP Weaver Company | All Rights Reserved
